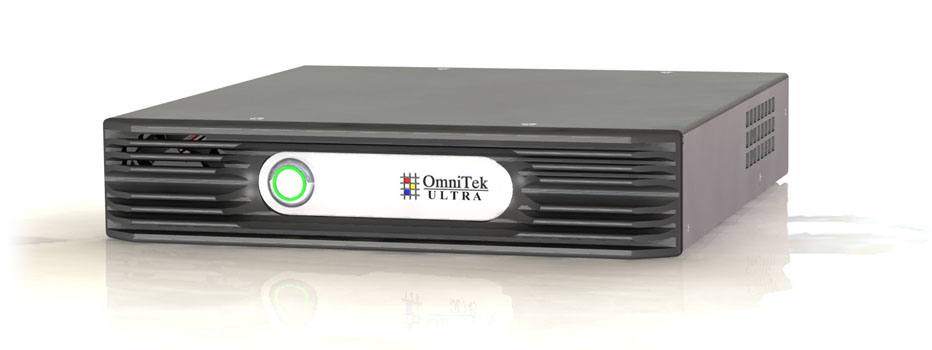

ITEMS | Ultra 4K Tool Box |
---|---|

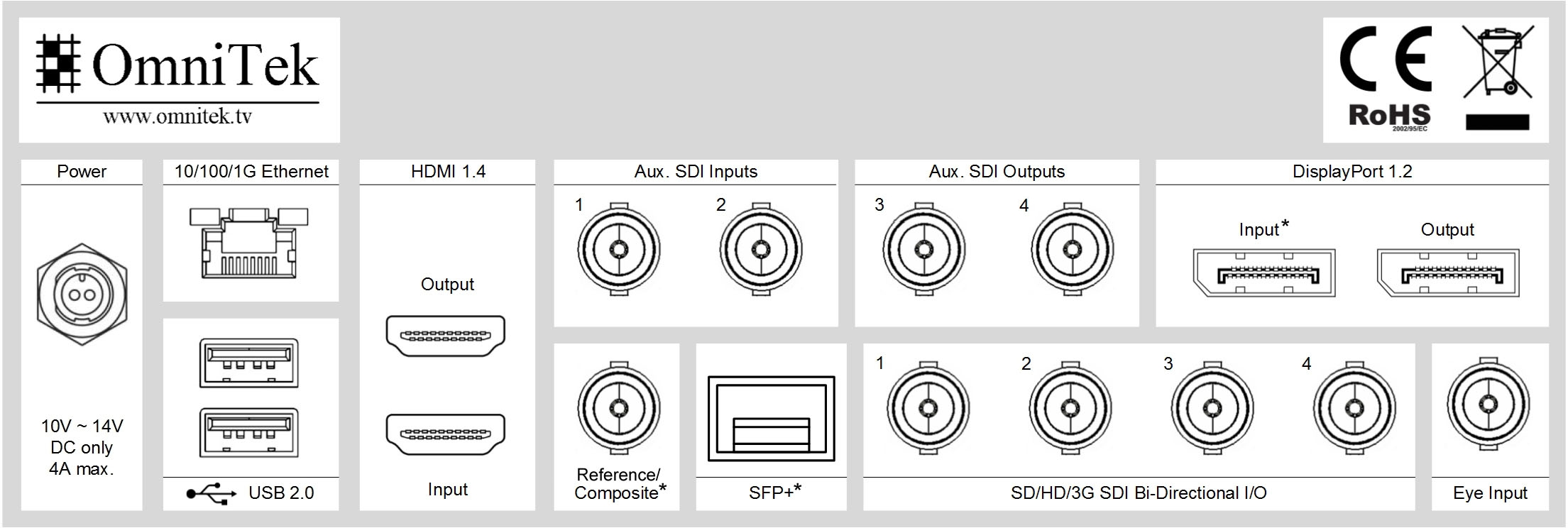

Bidirectional I/O | |
3x SDI | 3G/HD/SD - supports up to Quad Link 4K/60 |
Connection | BNC, 75ohm input impedance |
Inputs | |

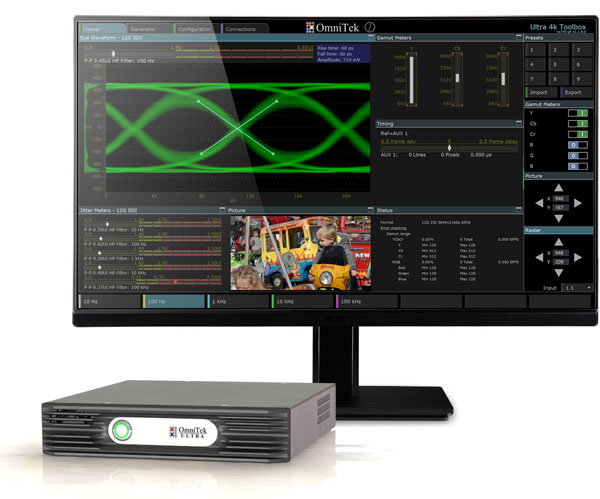

1x SDI (EYE) | 12G/6G/3G/HD/SD supports Eye and Jitter monitoring |
Connection | BNC, 75ohm input impedance |
2x SDI (AUX) | 12G/6G/3G/HD/SD - supports up to 4K/60 |
Connection | BNC, 75ohm input impedance |
HDMI | HDMI - supports up to 1080p60 |
Outputs | |
2x SDI (AUX) | 12G/6G/3G/HD/SD - supports up to 4K/60 |
Connection | BNC, 75ohm input impedance |
DisplayPort | DisplayPort 1.2 MST & SST - supports up to 4K/60 |
HDMI | HDMI - supports up to 1080p60 |
Reference | |
Sync Input | Analogue Black (0.3V p-p) or Tri-level (0.6V p-p) |
Connection | BNC, 75ohm input impedance |
Communications, Control & file i/o | |
Ethernet | 1Gb/s |
Connection | RJ45 |
2x USB | USB 2.0 |
User Interface | |
Display | HDMI, DisplayPort or HTML over IP |
Control | USB keyboard and mouse/trackerball or via browser |
Video Formats | |
SDI | 4096x2160p - 23.98/24/25/29.97/30/47.952/48/50/59.94/60Hz 3840x2160p - 23.98/24/25/29.97/30/50/59.94/60Hz 2048x1080p - 23.98/24/25/29.97/30/47.952/48/50/59.94/60Hz 1920x1080p - 23.98/24/25/29.97/30/50/59.94/60Hz 2048, 1920x1080sF - 23.98/24/25/29.97/30Hz 2048, 1920x1080i - 50/59.94/60Hz 1280x720p - 23.98/24/25/29.97/30/50/59.94/60Hz 720x486i - 59.94, 576i - 50Hz |
Sampling | 4:2:2, 4:4:4 - Y, Cr, Cb, R, G, B - 8, 10, 12 bits |
HDMI | 1280x720p - 50/60Hz 1920x1080p - 50/60Hz |
DisplayPort | 1280x720p - 50/60Hz 1920x1080p - 50/60Hz 3840x2160p - 30/50/60Hz |
Standards | |
UHDTV1 50/60 | 12G-SDI ST 2082-10 (2SI) Dual-link 6G-SDI ST 2081-11 (2SI) Quad-link 3GA-SDI/3GB-SDI ST 425-5 (2SI and SQ) |
UHDTV1 25/30 | 6G-SDI ST 2081-10 (2SI) Dual-link 3GB-SDI ST 425-3 (2SI and SQ) Quad-link HD-SDI (SQ) |
HD 1080p | 3GA-SDI/3GB-SDI/3GB-DS-SDI/Dual-link HD-SDI ST 425-1, 372 |
HD/SD | ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020 |
Environmental | |
Power | 12V DC 60W. PSU 100-240V AC 50-60Hz |
Size/Weight | 215mm x 233mm x 42mm, 1.7Kg |
Temperature | Operational: +5...+35C Storage: -20...+50C |
Humidity | <95% non-condensing |
System Options | |
System Options | 4K Tool Box with Analyzer, Generator, Converter, PHY to 6G Also as separate Analyzer, Generator or Converter to 6G |
VIDEO_12G | I/O support for 12G-SDI |
ANALYZE | Data analysis |

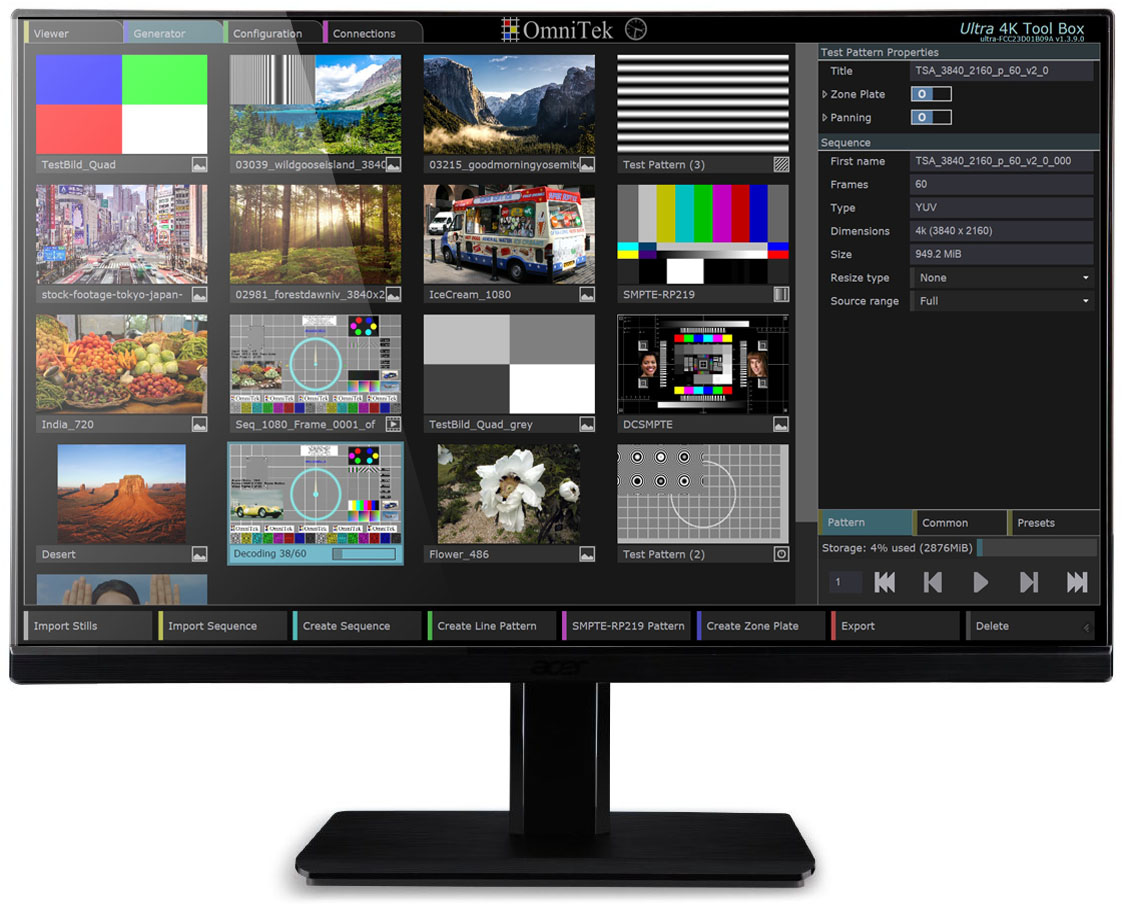

GENERATE | Multi-format generator |
CONVERT | Multi-format converter |
PHY | Physical layer analysis up to 6Gb/s |
PHY_ADV | Advanced physical layer analysis (requires PHY) and 12Gb/s physical layer support (requires VIDEO_12G) |
