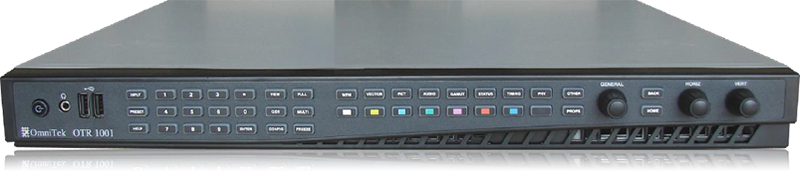

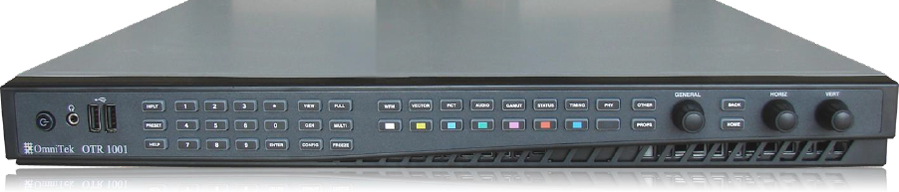

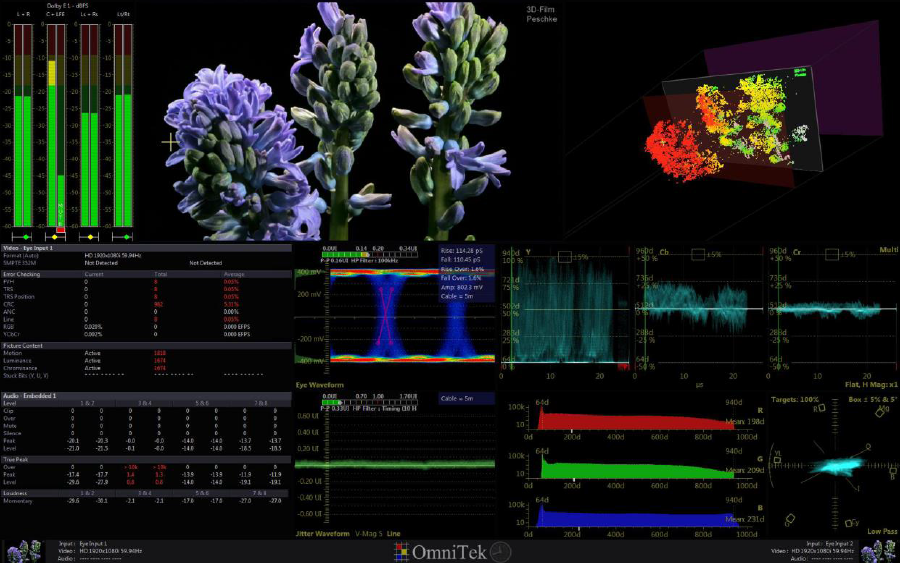

ITEMS | OTR-1001 |
---|---|
Serial Digital Inputs | |
Connection | 2 x BNC with 75ohm termination |
Return Loss | >15dB to 1.5GHz, >10dB to 3GHz |
Bit Rates | 270Mb/s, 1.485Gb/s, 2.97Gb/s (SMPTE 259M, 292M, 424M) |
Serial Digital Outputs | |
Connection | 2 x BNC with 75ohm termination |
Bit Rates | 270Mb/s, 1.485Gb/s, 2.97Gb/s (SMPTE 259M, 292M, 424M) |
Jitter | Timing Jitter: < 0.2UI (SD), < 1.0UI (HD), < 2.0UI (3Gb/s) Alignment Jitter: < 0.2UI (SD), < 0.2UI (HD), < 0.3UI (3Gb/s) |
Monitor Out Connector | |
Connection | 8-pin Lemo |
Video Output | RGB with bi- or tri-level sync on green, 0.7Vpk-pk video; or YPrPb with bi- or tri-level sync on Y, 0.7Vpk-pk video |
Performance | |
Raster Formats | 486i / 59.94, 576i / 50 (ITU-R BT.601) 720p / 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz (SMPTE 296M) 1080sF / 23.98, 24, 25, 29.97, 30Hz (SMPTE 274M, RP211) 1080i / 50, 59.94, 60Hz (SMPTE 274M) 1080p / 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz (SMPTE 274M, 425M) |
Sampling | 4:2:2, 4:4:4, and 4:4:4 + Alpha (SMPTE 372M) |
Resolution | 8-, 10-, or 12-bits per pixel (SMPTE 372M) |
Generators | Total image storage capacity = 2GByte. Sequence capture/play-out duration depends on video format & sampling structure. |
Genlock | Output timing adjustable (with respect to sync input) in clock increments from 0 to 1 video frame. |
Environmental | |
Power | 90...250Vac 47...63Hz autodetect. 150W maximum |
Size/Weight | 1RU chassis: 490mm x 430mm x 45mm, 8Kg |
Temperature | Storage: -20...+50C, humidity <95% non-condensing |
Reference Loop | |
Connection | 2 x BNC, high impedance loop-through |
Sync Input | Black with bi-level (0.3 Vpk-pk) or tri-level (0.6 Vpk-pk) composite sync. |
Return Loss | >30dB up to 30MHz, with suitable termination on one BNC |
* 제품의 품질 향상을 위해 예고없이 변경될 수 있습니다.
