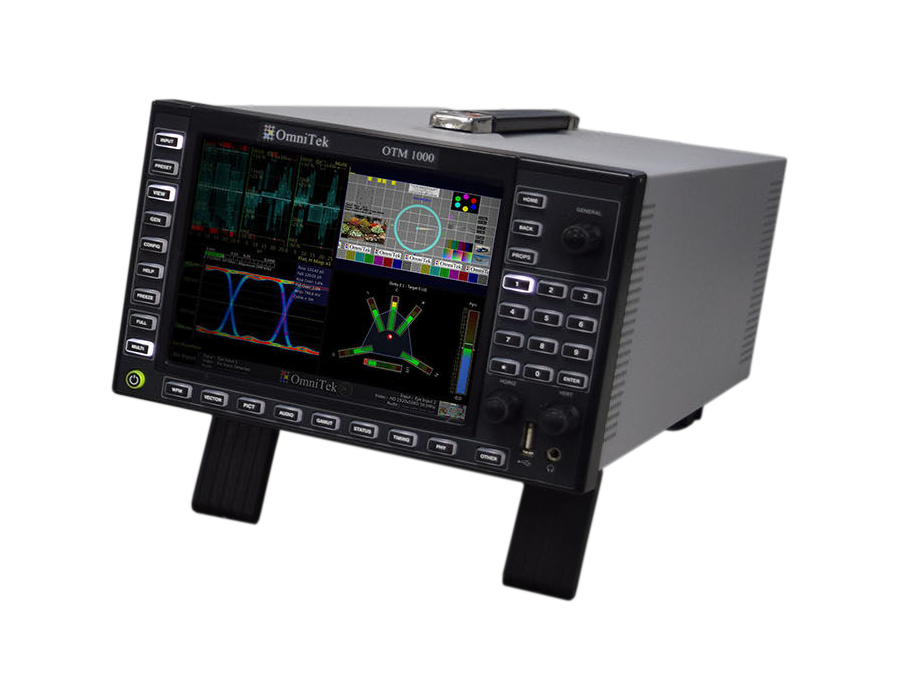

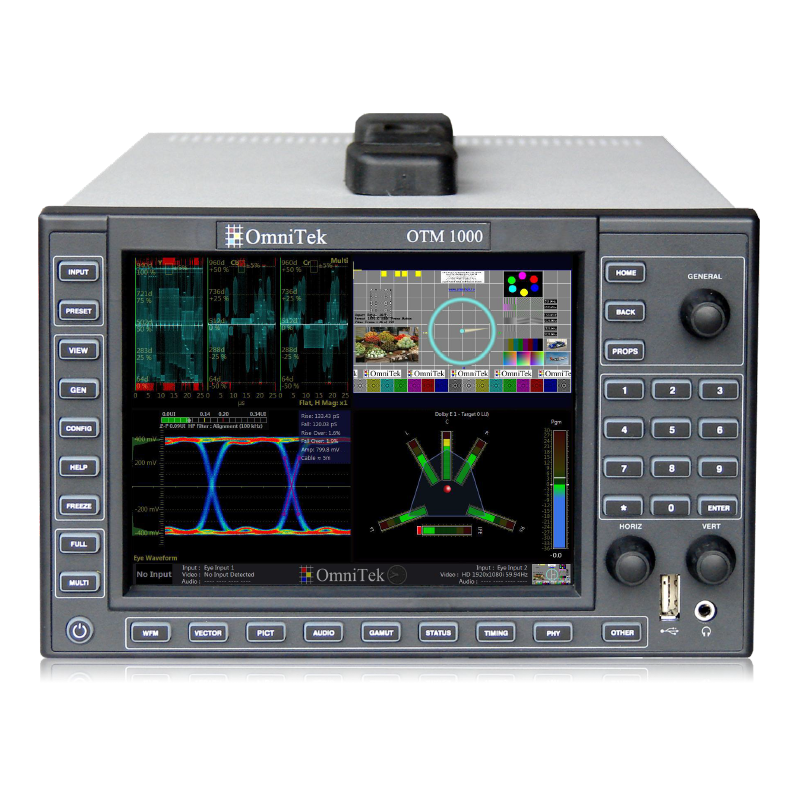

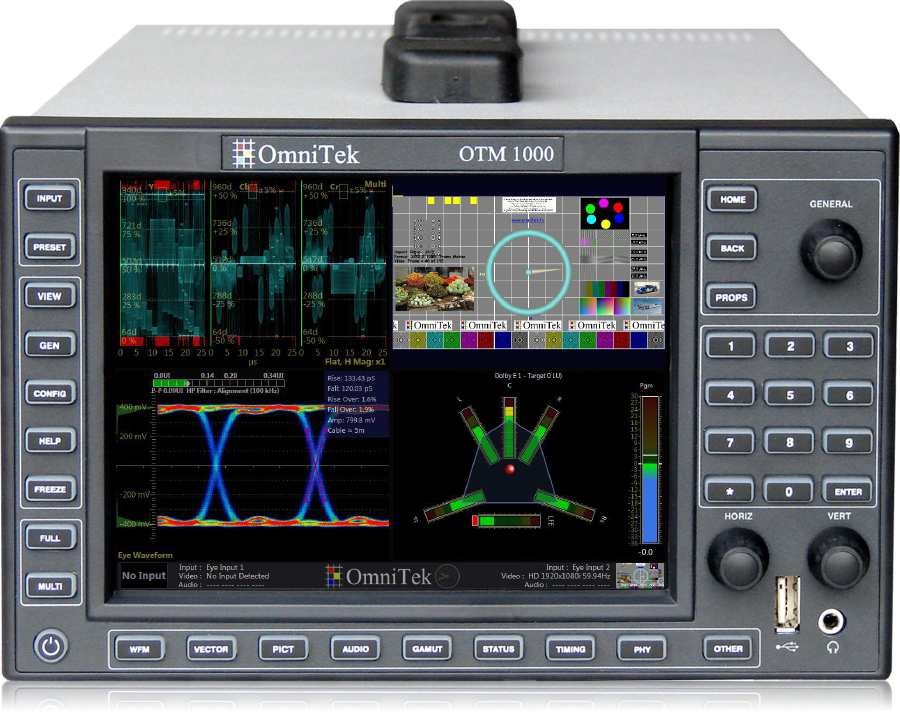

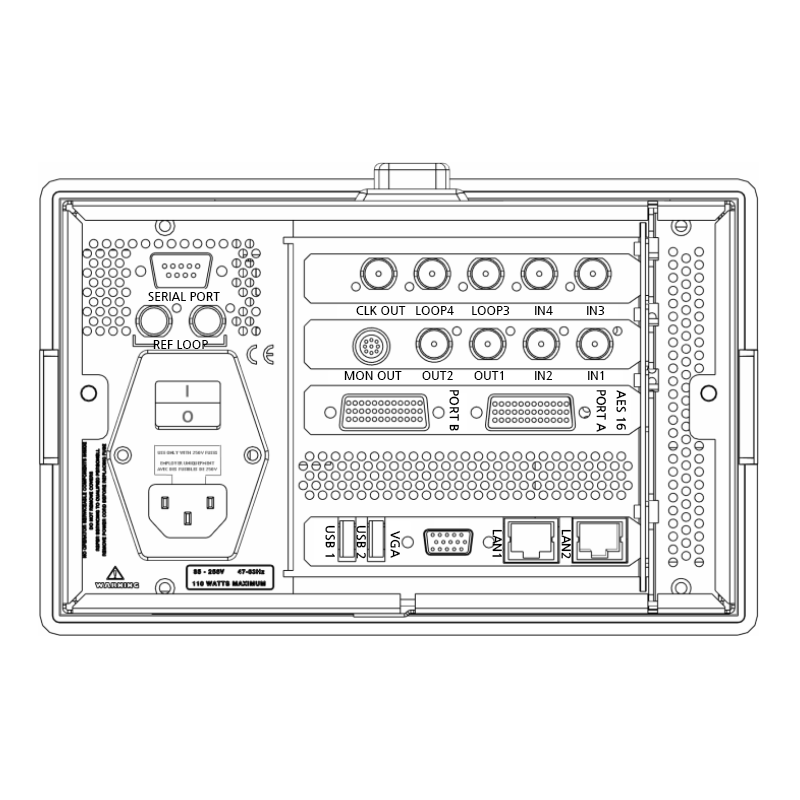

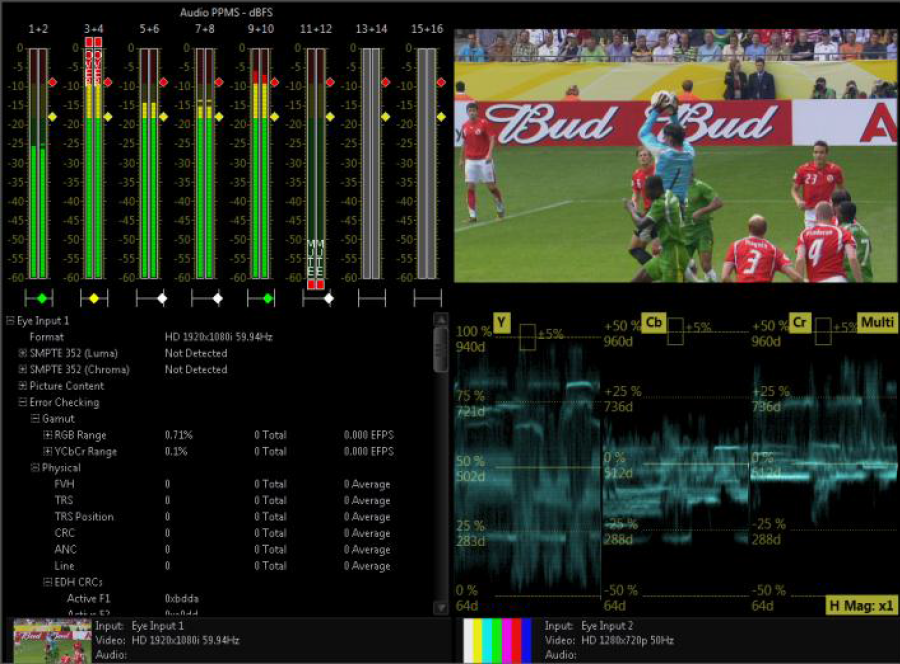

ITEMS | OTM-1000 |
---|---|
Serial Digital Inputs | |
Connection | 2 x BNC with 75ohm termination |
Return Loss | >15dB to 1.5GHz, >10dB to 3GHzBit |
Bit Rates | 270Mb/s, 1.485Gb/s, 2.97Gb/s (SMPTE 259M, 292M, 424M) |
Serial Digital Outputs | |
Connection | 2 x BNC with 75ohm termination |
Bit Rates | 270Mb/s, 1.485Gb/s, 2.97Gb/s (SMPTE 259M, 292M, 424M) |
Timing Jitter | < 0.2UI (SD), < 1.0UI (HD), < 2.0UI (3Gb/s) |
Alignment Jitter | < 0.2UI (SD), < 0.2UI (HD), < 0.3UI (3Gb/s) |
Monitor Out Connector | |
Connection | 8-pin Lemo |
Video Output | RGB with bi- or tri-level sync on green, 0.7Vpk-pk video; or YPrPb with bi- or tri-level sync on Y, 0.7Vpk-pk video |
AES Audio (optional) | |
Connection | 8 input channels, 16 output channels, break-out cable provided. |
Reference Loop | |
Connection | 2 x BNC, high impedance loop-through |
Sync Input | Black with bi-level (0.3 Vpk-pk) or tri-level (0.6 Vpk-pk) composite sync. |
Return Loss | >30dB up to 30MHz, with suitable termination on one BNC |
LTC unit (optional) | |
Connection | RS-422 interface. Differential, input impedance 24kohm |
Audio | |
Connection | Analog headphone output signal, output impedance <50ohm |
Network connectivity | |
Connection | 2 ports as 10/100/1000Mbps |
Performance | |
Raster Formats | 486i / 59.94, 576i / 50 (ITU-R BT.601) 720p / 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz (SMPTE 296M) 1035i / 59.94, 60Hz (SMPTE 260M) 1080sF / 23.98, 24, 25, 29.97, 30Hz (SMPTE 274M, RP211) 1080i / 50, 59.94, 60Hz (SMPTE 274M) 1080p / 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz (SMPTE 274M, 425M) |
Sampling | 4:2:2, 4:4:4, and 4:4:4 + Alpha (SMPTE 372M) |
Resolution | 8-, 10-, or 12-bits per pixel (SMPTE 372M) |
Generator | Total image storage capacity = 2GByte. Sequence capture/play-out duration depends on video format & sampling structure. |
Genlock | Output timing adjustable (with respect to sync input) in clock increments from 0 to 1 video frame. |
UI resolution | 1024 x 768 (on-board LCD), 1920 x 1200 (VGA). |
Environmental | |
Power | 90...250Vac 47...63Hz autodetect. 150W maximum |
Size/Weight | Standard case - 430mm x 200mm x 120mm, 9Kg |
Temperature | Operational: +5...+35C, humidity <95% non-condensing Storage: -20...+50C, humidity <95% non-condensing |
HD/SD | ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020 |
Environmental | |
Power | 12V DC 60W. PSU 100-240V AC 50-60Hz |
Size/Weight | 215mm x 233mm x 42mm, 1.7Kg |
Temperature | Operational: +5...+35C Storage: -20...+50C |
Humidity | <95% non-condensing |
System Options | |
System Options | 4K Tool Box with Analyzer, Generator, Converter, PHY to 6G Also as separate Analyzer, Generator or Converter to 6G |
VIDEO_12G | I/O support for 12G-SDI |
ANALYZE | Data analysis |
GENERATE | Multi-format generator |
CONVERT | Multi-format converter |
PHY | Physical layer analysis up to 6Gb/s |
PHY_ADV | Advanced physical layer analysis (requires PHY) and 12Gb/s physical layer support (requires VIDEO_12G) |
